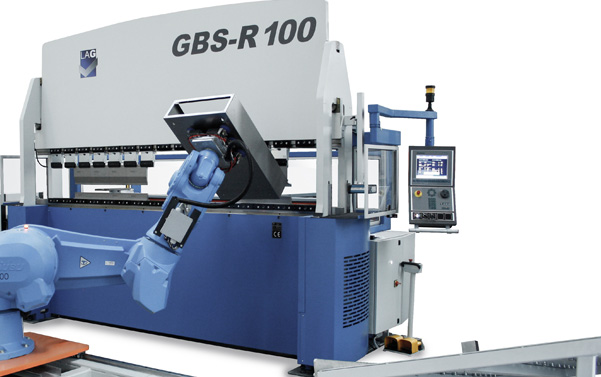

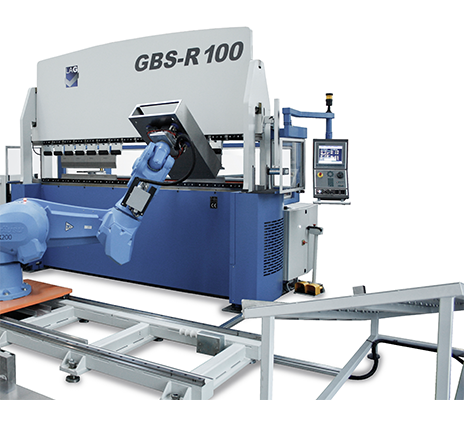

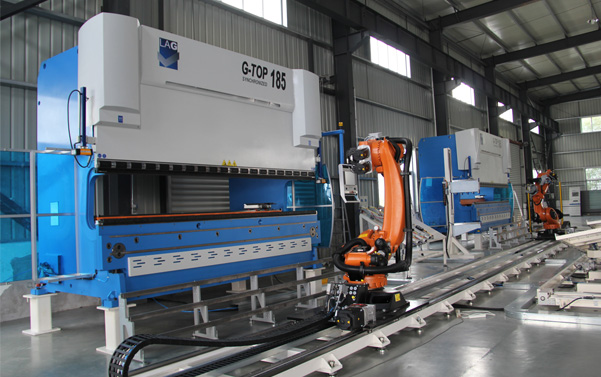

Robotic Bending Cell

Returns a list of

The automatic bending unit of LAG manipulator adopts the technology imported from Italy to achieve the automatic feeding and blanking as well as sorting and stacking. The automatic mold change technology of manipulator guarantees that the small-lot and multi-variety production has the same excellent efficiency as the scale production.

  • advantage：
  • Multi-variety production, the product requires no first test or programming instruction, and the production switch of product model is completed within 10 minutes;
  • Only the operators with strong learning ability and special research willingness a

The details show

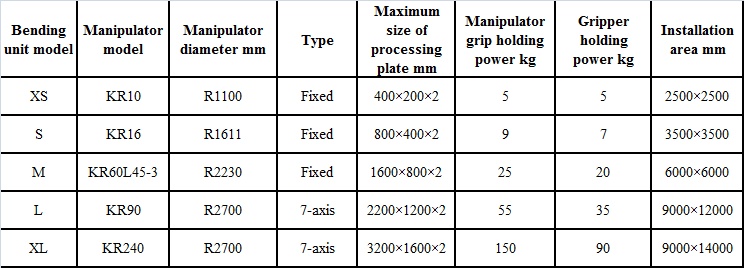

Detailed parameters


1.Development of the bending products (profile procedure) needed by customers

2.Separating unit of customized magnetic sheet metal LWH:  155*77*245mm

3. Positioning table LWH:  2700*1215*800mm

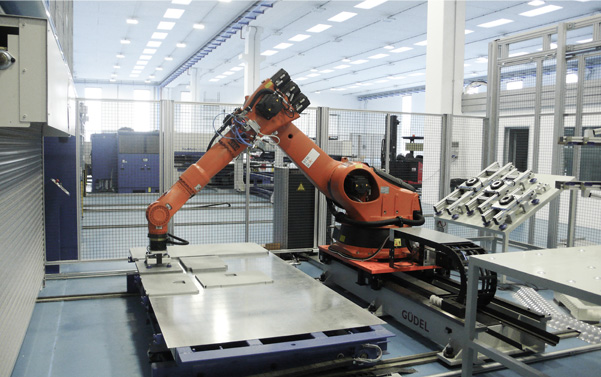

4. Axis servo carrying manipulator X-Y-Z:  3670-2645-1100mm

5. Axis manipulator and rail  Kuka series

6. Turnover mechanism of sheet metal 2500*1500 mm

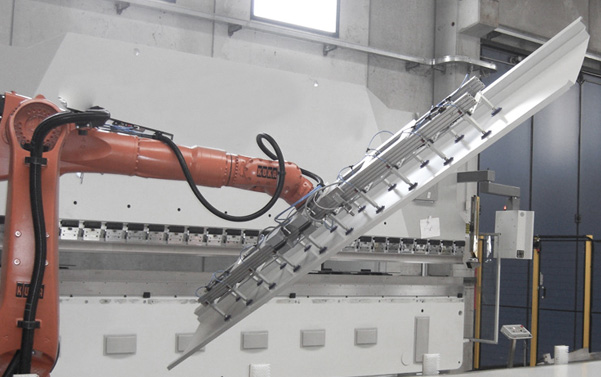

7. Gripper

Gripper G1LWH: 150*30*120mm

Gripper G2LWH: 150*30*120mm

Gripper G3LWH: 760*380*120mm

Gripper G4LWH: 760*380*120mm

GRIPPER ATC G5250*275 mm / 5S

8. Customized gripper library

9.Automatic mold library LH: 4000*680mm/3 layers  include

Automatic replacement of upper die    ATC-ADAPTOR BIU20-100 mm

Automatic replacement of lower die ATC-ADAPTOR OZU20-100 mm

10. Security defending system

11. Design and installation of general control electrical cabinets

12. Integration of production management software and PLC software

13. Remote control and field monitoring system

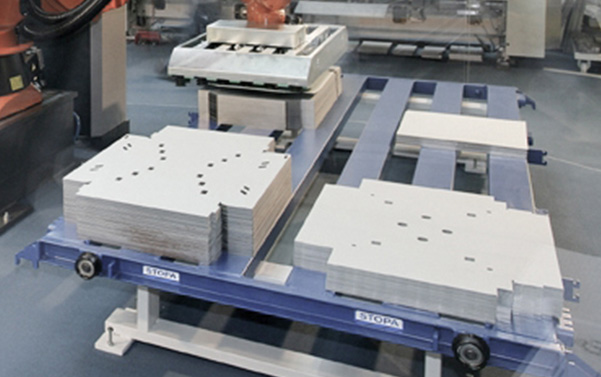

14. Stacking device

15. Automatic stacking programming
